Widedek

Widedek is an angular trapezoidal fluted sheet and is similar in appearance to IBR roof sheeting, the difference being the cover width of the roof sheet, and the depth of the flutes.

Description

PRODUCT DESCRIPTION & FEATURES

Widedek is an angular trapezoidal fluted sheet and is similar in appearance to IBR roof sheeting, the difference being the cover width of the roof sheet, and the depth of the flutes. Widedek sheeting has a cover width of 760mm and the depth of the flutes on Widedek is 29mm. The Widedek profile has a bigger cover width than IBR, resulting in a saving on sheeting.

Using this type of sheeting has certain cost saving advantages.

  • The Widedek profile has a better cover width than IBR, resulting in a saving of ±10% on sheeting purchased.
  • To achieve the same coverage less sheets are required to be erected, thus saving on time and labour.
  • The advantage of using Widedek in place of a sinusoidal corrugated profile is its strength. The spanning capacity of Widedek is greater than the corrugated profile thus requiring less purlin also resulting in a further cost saving
  • Widedek can be factory cranked, curved and bullnosed to a wide range of radii.

Widedek IBR Roof sheeting

Sample Specifications

Safintra 0,5mm thick AZ150 ZincAl Widedek profile roof sheeting, fixed to intermediate steel purlins at 1600mm centres and to ridge and eaves purlins at 1350mm centres, with 12 x 55mm long Fixtite® or Safintra approved Hex Head self-drilling screws at every second crest at intermediate purlins and every crest at eaves purlins all in accordance with the manufacturer’s recommendations.

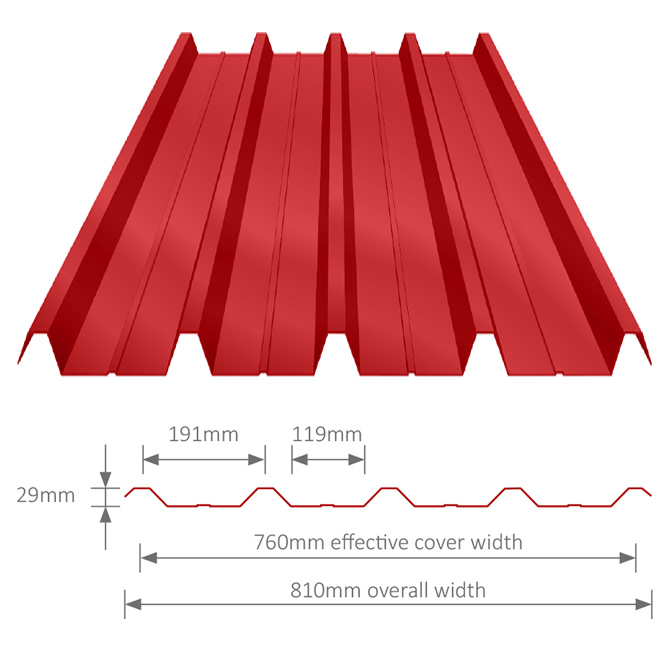

The sheeting shall be Widedek trapezoidal type profile as manufactured by Safintra Roofing. The profile shall be roll-formed with 5 trapezoidal ribs at 191mm centres with a nett cover of 760mm. The rib height shall be 29mm and shall be fix ed in accordance with the manufacturer’s recommendations.

Widedek IBR Roof sheeting

Lengths & Roof Pitch

When using Widedek sheeting the recommended minimum pitch for roof slopes in excess of 15m is 10° and for slopes less than 15m is 7.5°. Widedek sheeting can be ordered in any length, subject to transport limitations, up to 13,2m. Longer lengths require special transport arrangements.
