Sunset Double Roman

The Sunset Double Roman concrete bold roll tile comprises of a wide range of attractive tiles with exceptional features, offering the best in convenience, quality and service excellence.

Description

The Sunset Double Roman concrete bold roll tile comprises of a wide range of attractive tiles with exceptional features, offering the best in convenience, quality and service excellence.

Sunset Double Roman Roof Tile

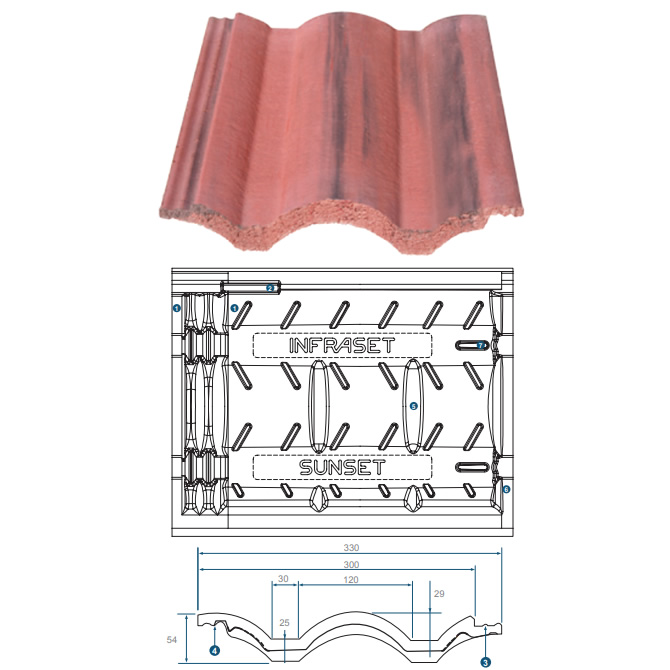

Features of the Sunset Double Roman concrete bold roll tile

  • Weather barrier against wind-driven rain (triple weather bars)
  • Clip housing
  • Tile interlock to ensure protection under adverse conditions
  • Precision interlock to fit position 3
  • Strengthening transversal ribs
  • Batten lugs and bearers
  • Batten bearers
Technical Specifications
Tile size (overall) 420 x 330 mm
Effective width 300 mm
Nominal tile mass 4.5 kg
Overlapping 100 mm
Battens centre 320 mm
Tiles per m2 10.42 tiles/m2
Weight per m2 47 kg
Roof pitch minimum 17º – 25º
Undertile membrane / Eco Shield™ manditory

Special note:

The roof structure specifications should comply with building regulations in your area.

No allowance made for wastage.



Available in the following colour options:

Brown Standard
SS BR STD
Amber Standard
SS AM STD
Red Standard
SS RE STD
Slate Standard
SS SL STD
Terracotta Standard
SS TC STD
Dolomite Standard*
SS DO STD
Brown Vintage
SS BR VT
Amber Vintage
SS AM VT
Red Vintage
SS RE VT
Slate Vintage
SS SL VT
Terracotta Vintage
SS TC VT
Dolomite Vintage*
SS DO VT

* Available on request. Subject to lead time and minimum order quantity.
