Fluteline

Fluteline is an angular trapezoidal fluted profile sheet with similar characteristics to IBR but having an effective cover of 889mm, which is wider than IBR.

Description

PRODUCT DESCRIPTION & FEATURES

Fluteline is an angular trapezoidal fluted profile sheet with similar characteristics to IBR but having an effective cover of 889mm, which is wider than IBR.

  • The general shape and appearance of the trapezoidal flutes ensure that Fluteline is totally acceptable for use as roof and wall cladding. The deep and broad flutes of the Fluteline type sheeting ensures excellent drainage characteristics, which makes it an ideal sheet for roofing applications.
  • Fluteline offers optimum strength-to-weight performance and is designed to provide the most advantageous load/span characteristics ensuring best economical usage.
  • Fluteline can be factory cranked, curved and bullnosed to a wide range of radii. For further details contact our Technical Department.
  • On galvanized steel purlins it is recommended to make use of an isolation tape to prevent the bridging of the two dissimilar materials. The recommended tape is a “Denso LDP 300” or similar. Should the two metals have direct contact it will ultimately result in the manifestation of galvanic corrosion. The service life of he Aluminium will be compromised.

Fluteline IBR Roof Sheeting

Sample Specifications

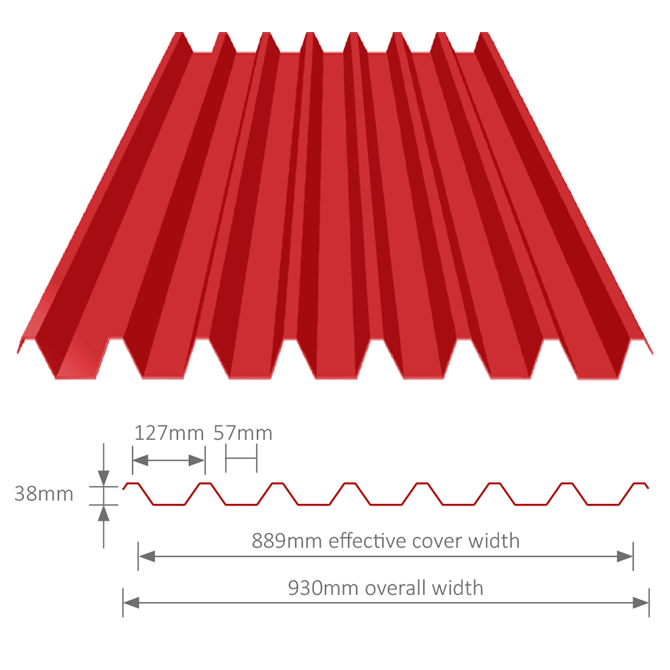

The sheeting shall be Fluteline profile as manufactured by Safintra Roofing. The profile shall be roll-formed with 8 trapezoidal ribs at 127mm centres with a nett cover of 889mm. The rib height shall be 38mm and shall be fixed in accordance with the manufacturer’s recommendations.

Safintra 0,5mm thick, 889mm cover Flutelinen Profile ® ZincAl AZ150 Roof Sheeting, fixed to steel channel purlins at 2000mm centres and eaves and ridge purlins at 1500mm centres, using 12 x 65mm stainless steel self tapping screws with bonded washer as described at first, third, fourth and sixth crest of each sheet and at all crest and sheet ends. Side laps to be secured using 6 x 20mm stainless steel self tapping screws with bonded washer over purlins and at centres not exceeding 500mm between purlins with minimum 230mm end laps, all in accordance with the manufacturer’s recommendations.

Purlin Spacings

Purlin Spacings are dependant on both downward loading and negative suction loading caused by wind. Your engineer should be consulted to calculate your load (kN/m2 ) for your particular application.

fluteline-industrial-seven-trapezoidal-fluted-profile-sheet

Lengths & Roof Pitch

When using Fluteline sheeting the recommended minimum pitch for roof slopes in excess of 15m is 7.5° and for slopes less than 15m is 5°. Fluteline sheeting can be ordered in any length, subject to transport limitations, up to 13,2m. Longer lengths require special transport arrangements.
