Classicorr

Corrugated roof sheeting is one of the defining aesthetic of a true South African heritage. Corrugated roof sheets are strong, light & travels well.

Description

The Corrugated profile of Classicorr is continuously curved sheeting that can be used as roofing and cladding material.

With its origins dating back to the Victorian era, Corrugated Roof Sheeting is probably the most commonly known sheeting profile used in the world today. The fact that the corrugated profiled sheeting has been around since before the turn of the century proves that this easy to use and effective profile for roofing and wall cladding is here to stay.

Classicorr Corrugated Roof Sheeting

Classicorr Corrugated Roof Sheeting Features

  • Classicorr Corrugated Roof Sheeting is the traditional and familiar S-Rib profile for roofing and cladding applications. The S-rib is derived from the sinus curve and offers very strong structural properties.
  • The Corrugated sheeting profile virtually eliminates oil canning.
  • Corrugated sheets can be factory cranked, curved and bullnosed to a wide range of radii. For further details contact our Technical Department.

Sample Specifications

Safintra 0,5mm thick, AZ150 ZincAl® Corrugated Profile Roof Sheeting, fixed to intermediate timber purlins at 1100mm centres and to ridge and eaves purlins at 900mm centres, with 12 x 45mm Fixtite® or Safintra approved Hex Head self-drilling screws. Sheets to be fixed with three fasteners per sheet per purlin. All in accordance with the manufacturers recommendations.

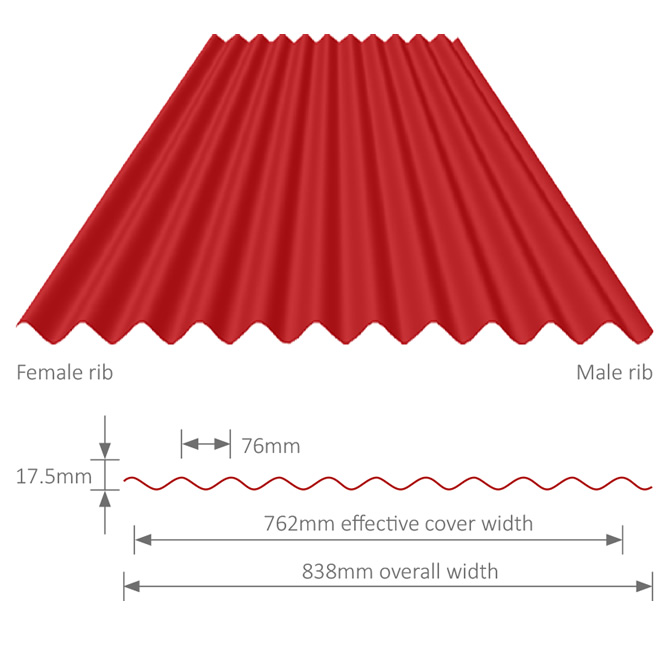

The sheeting will be the Corrugated Profile as manufactured by Safintra Roofing. The rib height shall be 17.5mm and shall be fixed in accordance with the manufacturer’s recommendations.

Classicorr Corrugated Roof Sheeting

Lengths & Roof Pitch

When using Corrugated sheeting the recommended minimum roof slope (pitch) for sheets longer than 15m is 15°, and for sheets shorter than 15m the minimum roof slope is 10°.
